Features

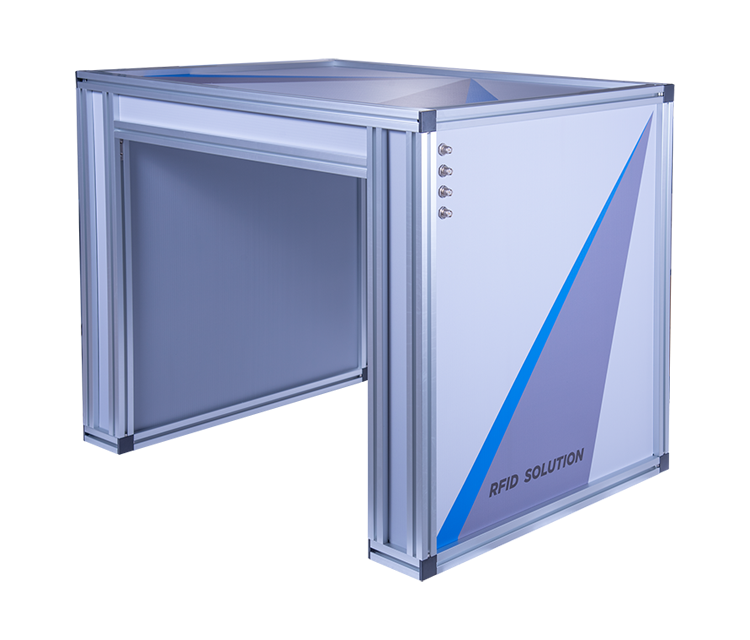

The RFID Tunnel is specifically designed for use in asset tracking RFID solutions. Each Tunnel includes four WAVE® Antennas. This is an easy to install, plug-and-play gate system that uses multiple beams to locate and read large numbers of tags simultaneously.
Sales Representatives: SVS.Sales@wnc.com.tw
WAVE® Antenna
Specifications
| Part Number | XRBS-T |
|---|---|
| Dimensions | Exterior: 81 cm(L) × 60.8 cm(W) × 66 cm(H) Interior: 60 cm(L) × 60.8 cm(W) × 55.5 cm(H) |
| Weight | 14 kg |
| Operating Temperature | –4 °F to 140 °F (–20 °C to 60 °C) |
| Frequency Range | 902 MHz to 928 MHz |
| User-defined Zone Coverage Range | 60 cm × 60cm × 60 cm |
| Gain | 5.5 dBi |
| Impedance | 50 Ω |
| VSWR | < 1.7 : 1 |
| Polarization | Multi-linear |
| Maximum Input Power | 10 W |
| Beamwidth | 270° |
| Connector | TNC reverse polarity |
| Supplied Cable and Length | None |

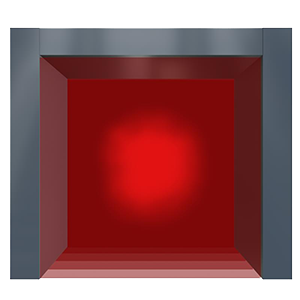

Antenna Radiation Pattern
WAVE® Antennas are designed to uniformly illuminate a volume of space. When installed in pairs, the antennas complement each other and provide spatial, direction-of-arrival, and polarization diversities throughout the volume.
