WAVE® Cabinet

Share on

Features

WNC's WAVE® Cabinet uses WAVE® antennas to provide real-time inventory of stored items as well as identification of all items placed into or taken out of the cabinet. It features customizable software with an easy-to-use interface, enabling users to effortlessly view inventory, search for and store/remove items.

Sales Representatives: [email protected]

Product Catalog

Software Features

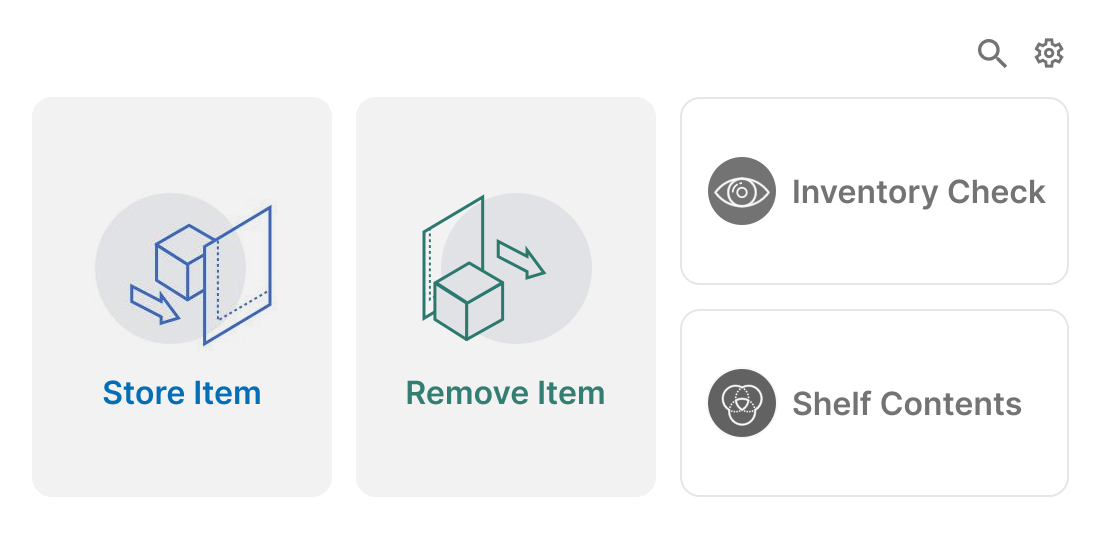

Customizable UI interface (sample interface shown here)

Specifications

Model Name	XRBS-EC5
Dimensions	Exterior: 150 cm (H) × 51.7cm (W) × 65.2 cm (D) Topmost shelf interior size: 27.8 cm (H) × 39.8 cm (W) × 51.0 cm (D) Middle and bottom shelf interior size: 24.4 cm (H) × 39.8 cm (W) × 51.0 cm (D)
Material Composition (Exterior)	SPCC/SECC
Material Composition (Shelving)	PVC
Coating	Powder coating
No. of Shelves	3 (adjustable)
User Interface	Touchscreen interface
Installation Requirements	1. An 110V outlet and Ethernet port are required for installation 2. Install in indoor locations away from direct sunlight
Ambient Operating Temperature	0 °C–40 °C (32 °F–104 °F )
